120m³/h Double Chassis Mobile Concrete Batching Plant
Concrete plant is a facility in which, by combining sand, water, aggregates, cement and additives, concrete production occurs. Mobile concrete plants are suitable for users who plan to change the location frequently. TTC offers you mobile concrete plant on single and double chassis.
Technical Details

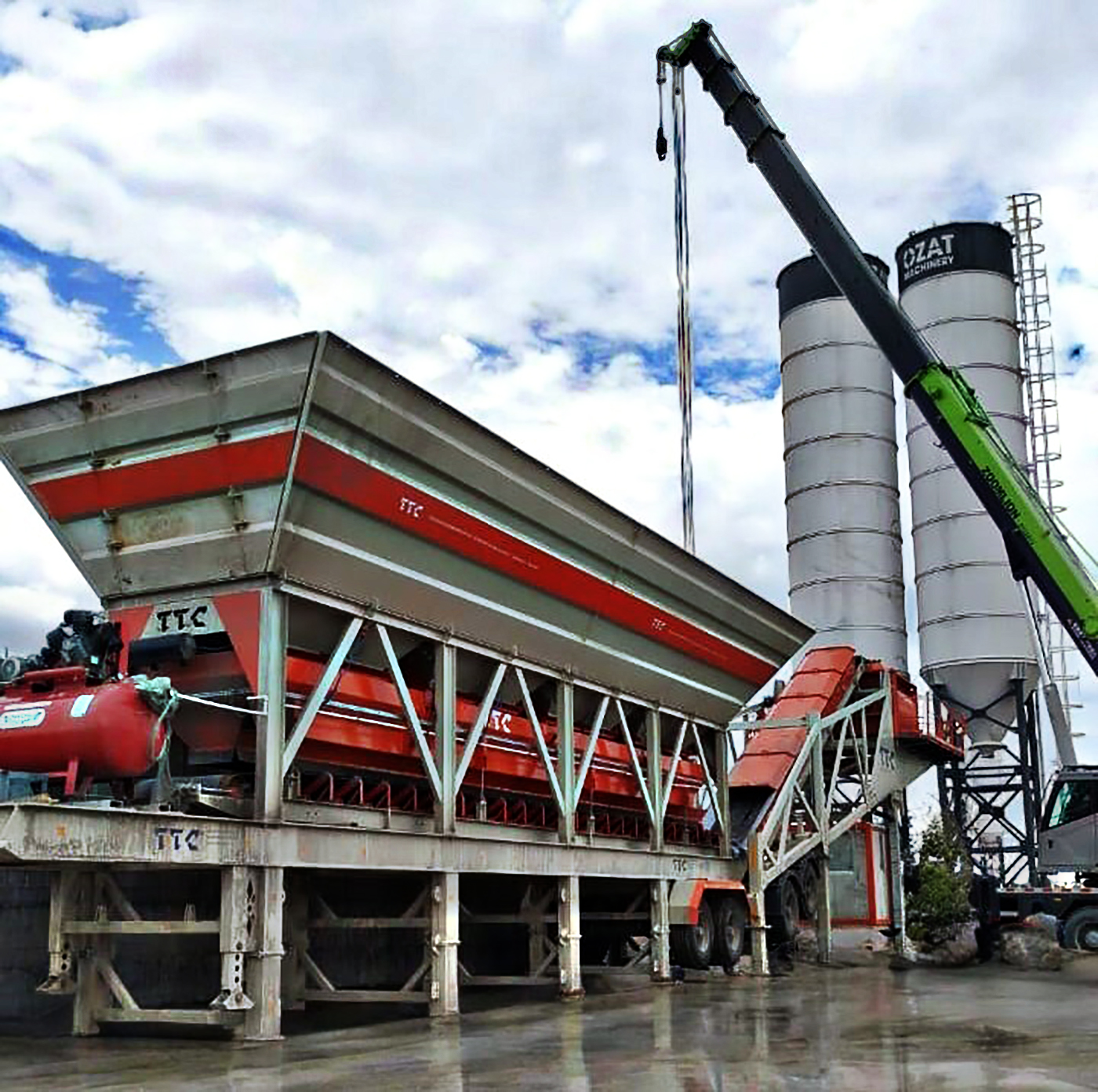

80m³ Aggregate Bunker
4 pieces of 20m³ Aggregate Bunkers are manufactured from 5mm ST37-A1 quality sheet metal with Trapezoidal Twisting.
Bunker covers are bolted to each other and connected to the main chassis in an articulated manner.
There are 4 pneumatic discharge covers in each chamber.
The discharge cover is articulated with bearings.
There are 2 0.27 kW Vibromotors.
8m³ Aggregate Weighing Bunker
It has a volumetric capacity of 8m³ and a weight capacity of 10000kg.
It is manufactured from 4mm ST37 - A1 quality sheet metal.
There are 2 pneumatic outlet covers.
It is weighed with 4 loadcells.
It has a 0.18 kW vibromotor.

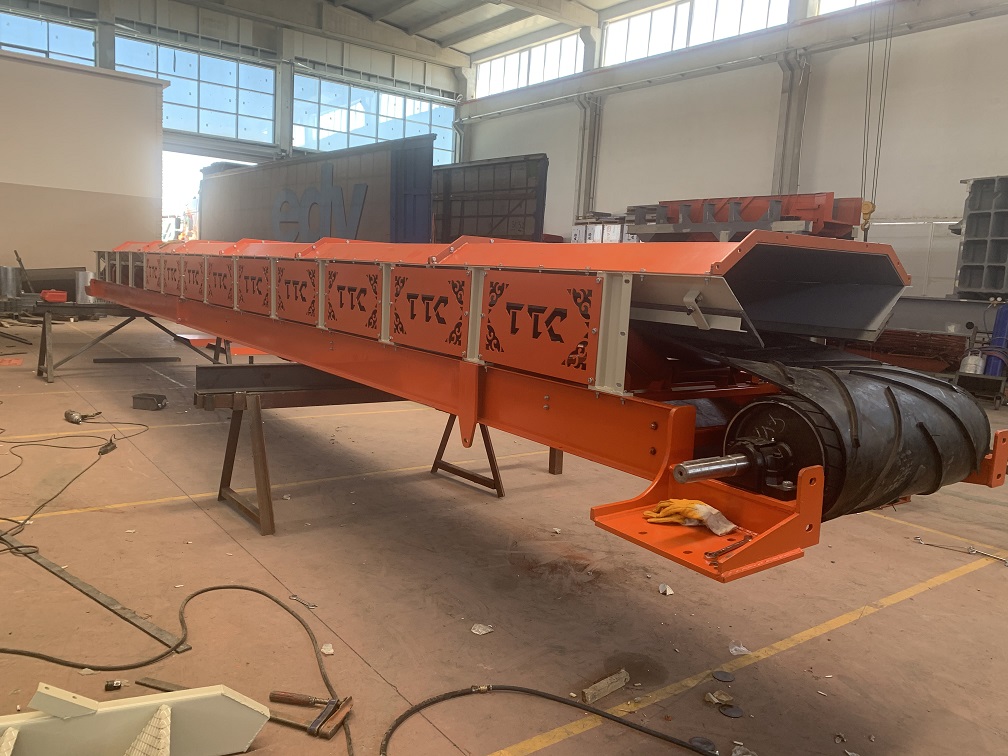

1000mm Aggregate Weighing and Transfer Conveyor
1000mmX15350mm Belt Conveyor
15kW Motor - DG2-250 Reducer
8mm ST37 sheet metal conveyor chassis
1000mm
Mixer Upper Group
Cement Weighing Tank:
* 1800kg Capacity
* 3 Loadcell
* 1 Piece MVE100/3 Vibromotor
* Ø300mm Pneumatic Valve
Water Weighing Tank
* 1000lt Capacity
* 3 Loadcells
* Ø200mm Pneumatic Valve
Additive Weighing Tank:
* 50 kg Capacity
* S Type Loadcell
* 1" Valve
3m³ Twinshaft Mixer
Dry Concrete Capacity: 4000lt
Wet Concrete Capacity: 3000lt
Engine Power: 2x55 kW
Reducer: ERMAKSAN
Lubrication: 4 Point Automatic Lubrication System
Mixing System: Helical Arms
